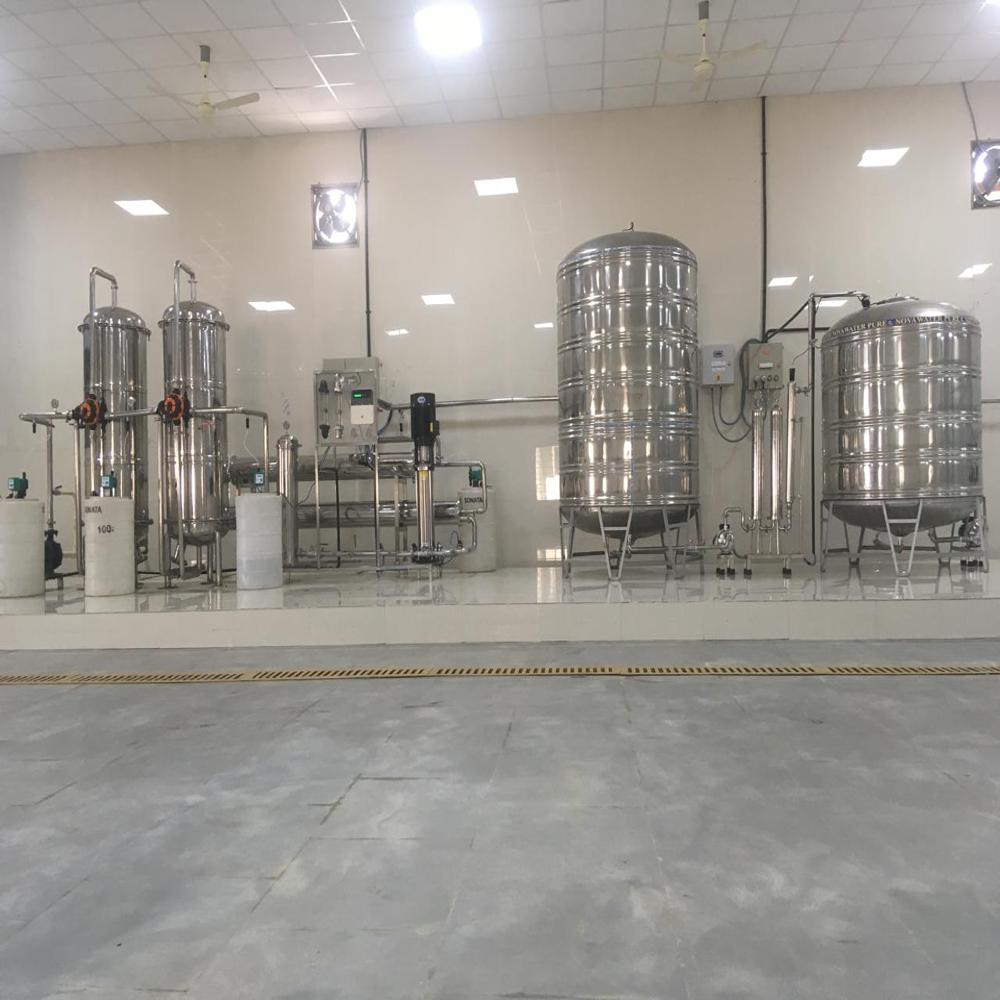

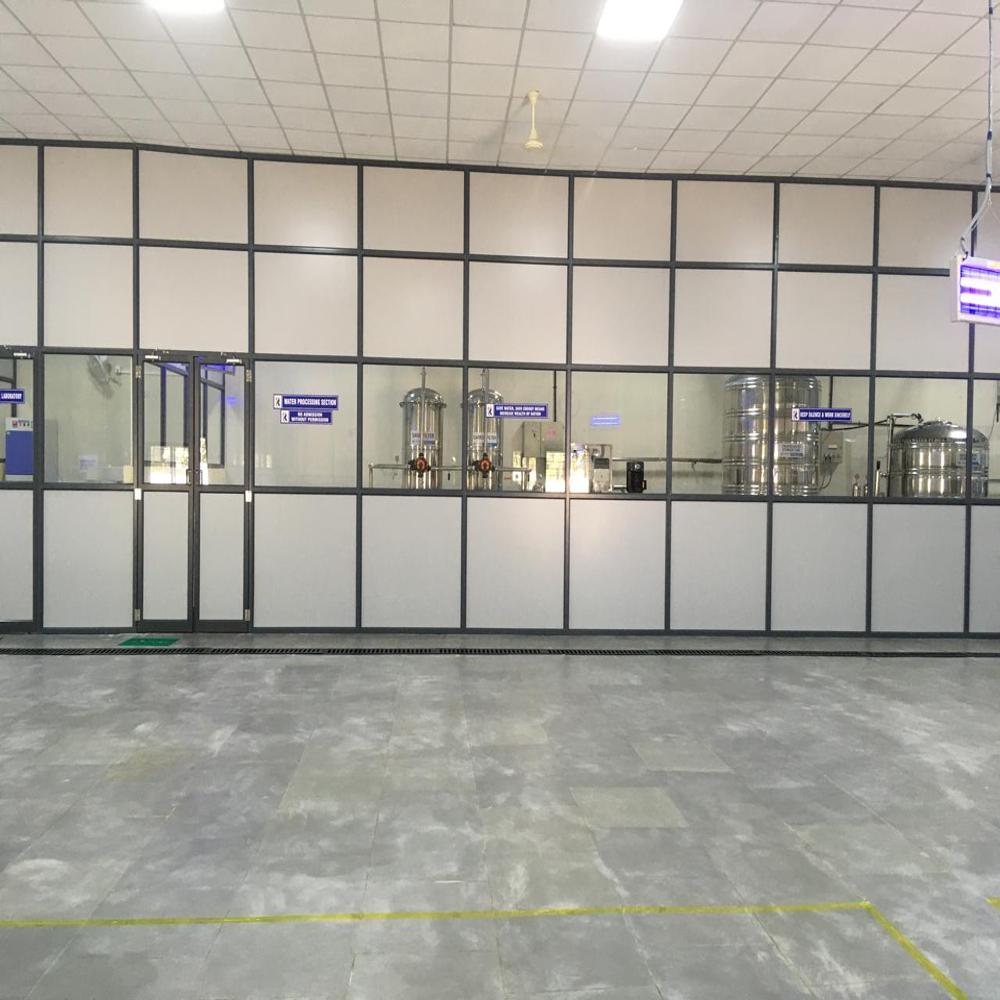

Packaged drinking water plant

Packaged drinking water plant Specification

Water Out Conductivity
<20 S/cm

Noise Level
Low (<70 dB)

Technology
Reverse Osmosis (RO), UV Sterilization, Ozonation

Recycle Rate
80-90%

Efficiency (%)
Up to 98%

Water in conductivity
Up to 2000 S/cm

Flow Rate
Customizable as per requirement

Power Consumption
3-15 kW (Depending on Capacity)

Pump Type
Centrifugal/High Pressure Pump

Usage & Applications
Bottling Plants/ Industrial/ Commercial Use

Frequency
50 Hz

Feature
Rust Proof, Durable, Low Maintenance

Ph Level
6.5 - 8.5

Power Source
Electric

Water Source
Borewell/ Municipal/ River/ Spring Water

Volume
As per plant capacity

Purity Level
99.9%

Product Type
Packaged Drinking Water Plant

Material
Stainless Steel (SS-304/316)

Drive Type
Electric Motor

Voltage
220-440 V

Automatic Grade
Automatic

Filter Type
Multi Grade Filter, Activated Carbon Filter

Capacity
500 LPH to 20,000 LPH

Installation Type
Containerized/ Skid Mounted/ On-site

Control Panel Type
PLC Based or Manual

Input Water Pressure
2-4 Bar

Pretreatment System
Sand Filter, Carbon Filter, Micron Filter

Pump Material
SS-304/316

Packaging System
PET Bottle Filling & Capping Optional

Disinfection Method
Ozonation/UV

Outlet Water TDS
<50 ppm

Pre-filtration
5 Micron Cartridge

System Structure
Skid Mounted Modular Design

Surface Finish
Polished

Packaged drinking water plant Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Supply Ability
5 Units Per Month

Delivery Time
8 Week

Sample Available
No

Packaging Details
AS PER NORMS

Main Export Market(s)
Asia

Main Domestic Market
All India

About Packaged drinking water plant

We are a leading provider of mineral water projects and water purification solutions with over 15 years of experience. Our expertise in turnkey solutions has enabled us to successfully deliver more than 50+ projects across India.

In addition to our core services, we offer complimentary support to ensure a smooth project implementation. This includes:

Pre-Project Consultancy: Expert guidance on project feasibility and planning.

Loan and Subsidy Assistance: Helping you secure financing and government incentives.

Raw Material Sourcing: Reliable and sustainable supply chains.

Production Team Recruitment: Sourcing and training qualified personnel.

Quality Policy Implementation: Ensuring consistent product quality and safety.

Our client base includes renowned brands such as Spenca, Mountedge, Horison, Empire, Clyde, Splash, Dellaz, Swizzle, Veleta, Sparkle, Sayhdri, Sudhdok, Lerio, Skylon, RaghavAqua, UniversalAqua, and many more.

Advanced Multi-Stage Filtration and Purification

This plant employs a combination of sand, multi-grade, activated carbon, and 5-micron cartridge filters for thorough pretreatment, followed by RO, UV, and ozonation. The entire process ensures removal of suspended solids, organic matter, microbial contaminants, and dissolved salts, consistently delivering water with less than 50 ppm TDS and 99.9% purity.

Robust and Modular Construction

Built with polished SS-304/316, the system is rustproof, durable, and low maintenance. Options for containerized, skid-mounted, or onsite installation, along with PET bottle filling and capping, provide flexible integration for different operational needs. The PLC-based or manual control panel enhances process automation and efficiency.

FAQ's of Packaged drinking water plant:

Q: How does the Packaged Drinking Water Plant ensure effective water purification?

A: The plant combines multi-stage filtration (sand, carbon, micron) with advanced processes like reverse osmosis, UV sterilization, and ozonation. This multi-barrier approach effectively removes physical, chemical, and microbial contaminants, ensuring the output water meets high purity standards with a TDS below 50 ppm.

Q: What types of water sources are compatible with this plant?

A: This system can process water from borewell, municipal, river, or spring sources. Its robust pretreatment and filtration stages handle a wide range of input water conductivity-up to 2000 S/cm-making it suitable for diverse water qualities and regional requirements.

Q: Where can the plant be installed and how flexible is the setup?

A: The plant's skid-mounted, modular structure allows for installation in containerized, onsite, or factory settings. This adaptability makes it suitable for bottled water plants, industrial or commercial spaces, and sites with limited space or complex installation needs.

Q: What are the main benefits of using this water treatment system?

A: Key benefits include high water purity (99.9%), low TDS levels, customizable capacity (500 LPH to 20,000 LPH), energy efficiency, low operational noise, and minimal maintenance. The rust-proof stainless steel construction ensures durability and reliability in demanding environments.

Q: How is the plant operated and controlled?

A: Operation is straightforward, with options for fully automatic PLC-based control panels or manual systems. This allows users to monitor and manage purification processes easily, maximizing automation and reducing the need for constant manual oversight.

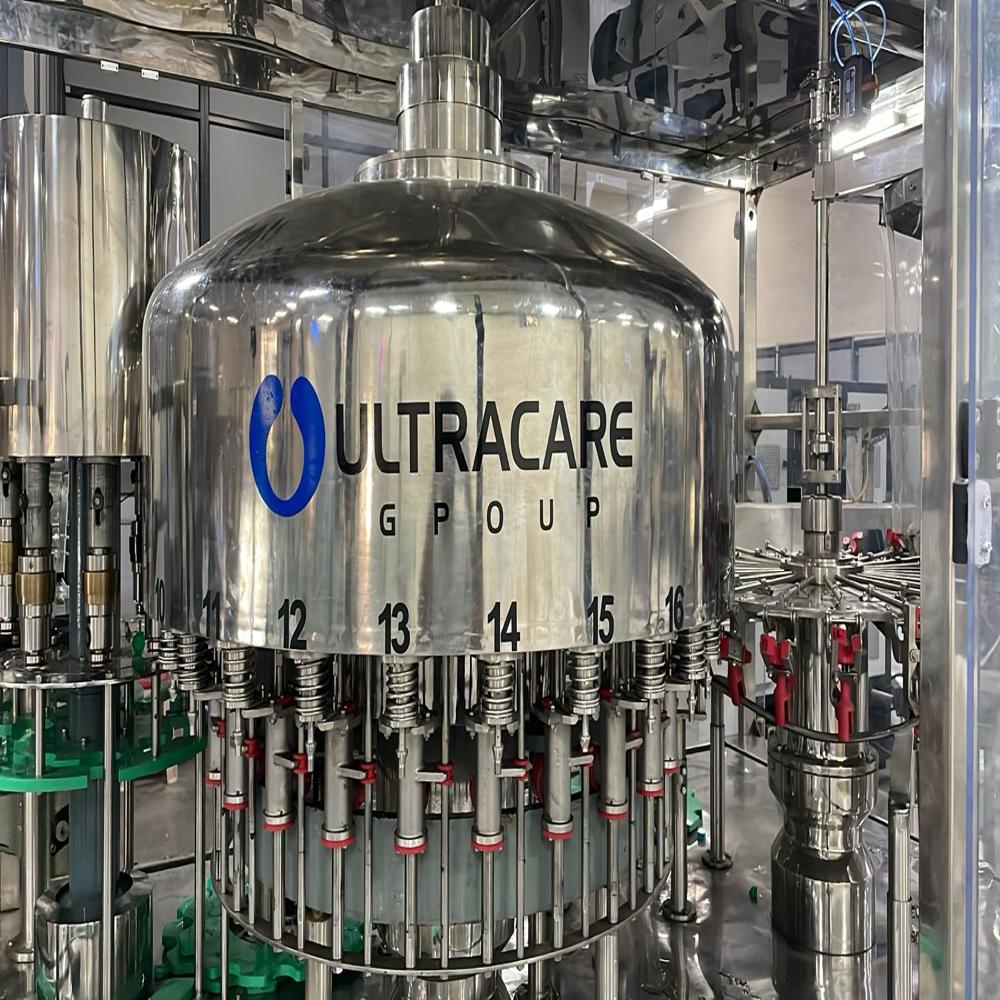

Q: When is it recommended to use PET bottle filling and capping?

A: PET bottle filling and capping is ideal for commercial bottling plants aiming to deliver packaged drinking water for retail or distribution. This integrated option streamlines bottling operations and ensures hygienic, safe packaging.
