40 Bpm water bottle plant

40 Bpm water bottle plant Specification

Flow Rate
2400 bottles/hour

Efficiency (%)
Above 95%

Frequency
50/60 Hz

Ph Level
6.5-8.5

Water Out Conductivity
<10 S/cm

Power Consumption
6-8 kW (approx.)

Usage & Applications
Packaged drinking water purification and bottling

Recycle Rate
Up to 98%

Noise Level
Low (<70 dB)

Pump Type
Centrifugal, Submersible

Feature
Bottle Rinsing, Filling, and Capping integrated

Technology
Reverse Osmosis, UV, Ozone

Material
Stainless Steel (SS 304/316)

Volume
Depending on bottle, 200 ml - 2.5 Liters

Power Source
Electric

Water Source
Borewell/municipal/ground water

Drive Type
Electric motor driven

Voltage
220/380 V, 50/60 Hz

Purity Level
Up to 99.9%

Product Type
Fully automatic bottling plant

Automatic Grade
Automatic

Filter Type
Multigrade, Carbon, Micron, Reverse Osmosis

Capacity
40 bottles per minute (BPM)

Installation Type
Skid Mounted/On-site Installation

Machine Dimensions
Approx. 4500 x 1200 x 1750 mm

Bottle Size Compatibility
200 ml to 2.5 L

Labor Requirement
2-3 persons per shift

Cleaning-In-Place (CIP) Provision
Available

Bottle Rinsing Stations
3-5

Control System
PLC based automated control panel

Container Material
PET, HDPE compatible

Capping Efficiency
>98%

Hopper Capacity
80-100 bottles

Capping Type
Screw/ROPP Cap compatible

Net Weight
1200-1600 kg (approx.)

Water in conductivity
Up to 2000 S/cm

Filling Accuracy
1%

40 Bpm water bottle plant Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Supply Ability
5 Units Per Month

Delivery Time
8 Week

Sample Available
No

Packaging Details
As per the norms

Main Export Market(s)
Asia

Main Domestic Market
All India

About 40 Bpm water bottle plant

We are a leading provider of mineral water projects and water purification solutions with over 15 years of experience. Our expertise in turnkey solutions has enabled us to successfully deliver more than 50+ projects across India.

In addition to our core services, we offer complimentary support to ensure a smooth project implementation. This includes:

Pre-Project Consultancy: Expert guidance on project feasibility and planning.

Loan and Subsidy Assistance: Helping you secure financing and government incentives.

Raw Material Sourcing: Reliable and sustainable supply chains.

Production Team Recruitment: Sourcing and training qualified personnel.

Quality Policy Implementation: Ensuring consistent product quality and safety.

Our client base includes renowned brands such as Spenca, Mountedge, Horison, Empire, Clyde, Splash, Dellaz, Swizzle, Veleta, Sparkle, Sayhdri, Sudhdok, Lerio, Skylon, RaghavAqua, UniversalAqua, and many more.

Automated & Precise Bottling Solution

This plant integrates bottle rinsing, filling, and capping in a seamless automatic process, minimizing manual intervention through its PLC-based control system. High filling accuracy (within 1%) and capping efficiency over 98% ensure product consistency and safety. Its flexibility allows handling bottles from 200 ml to 2.5 L with ease.

Robust Water Purification Technologies

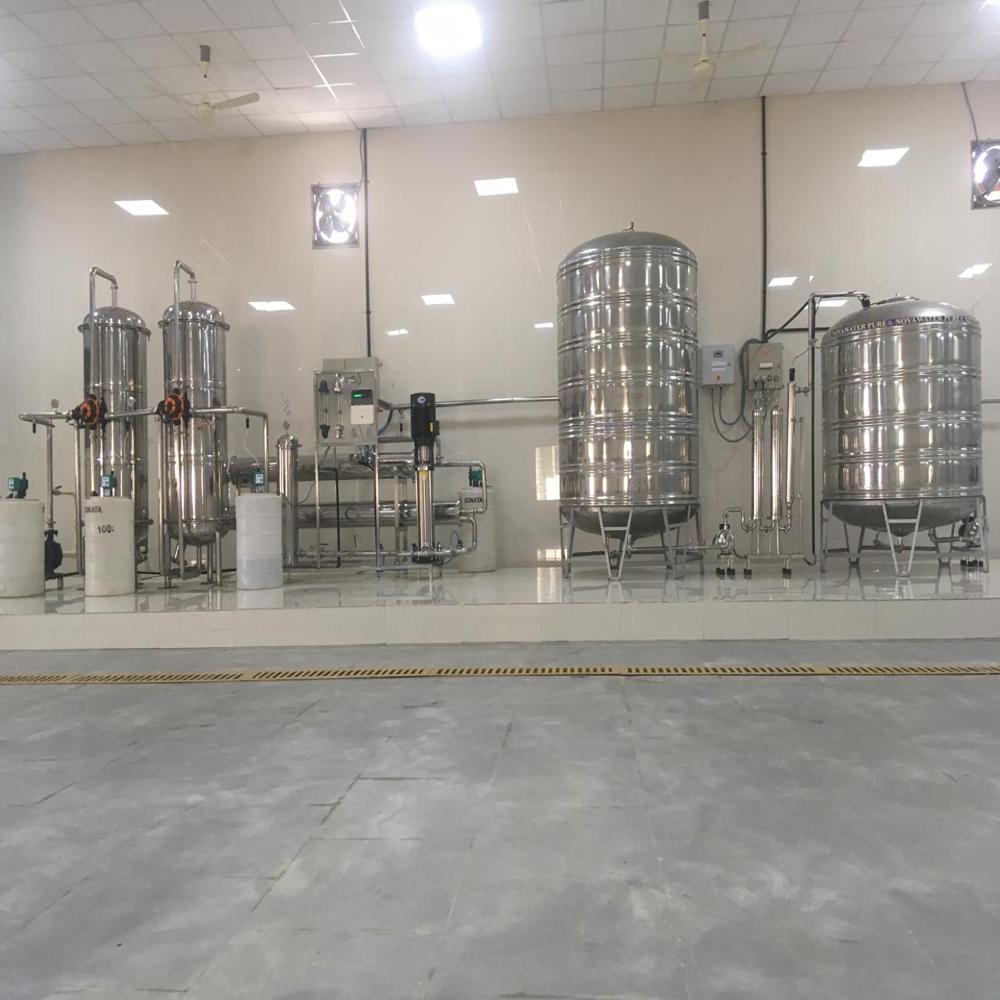

Leveraging technologies like reverse osmosis, UV, and ozone, this system delivers water of high purity (up to 99.9%), with conductivity reduced to below 10 S/cm. The design supports multiple water sources, including borewell, municipal, and groundwater, ensuring safe and reliable bottled water for consumers.

Versatility, Efficiency & User-Friendly Operation

With a capacity of 40 bottles per minute and a low noise level (<70 dB), the plant suits large-scale bottling needs with minimal impact on the working environment. PET and HDPE compatibility, quick installation (skid mounted/on-site), and user-oriented controls make it adaptable to varied production conditions across India.

FAQ's of 40 Bpm water bottle plant:

Q: How does the 40 BPM water bottle plant ensure water purity and safety?

A: The plant employs a multi-stage purification process featuring reverse osmosis, UV treatment, ozone sterilization, and multiple filters (multigrade, carbon, micron). These combined methods reduce contaminants, bringing water purity up to 99.9% and lowering conductivity to less than 10 S/cm, ensuring high safety standards for packaged drinking water.

Q: What bottles sizes and materials are compatible with this bottling plant?

A: The machine supports a wide range of bottle sizes, handling containers from 200 ml to 2.5 liters. It is compatible with both PET and HDPE bottles, making it suitable for various market requirements and user preferences.

Q: When is Cleaning-In-Place (CIP) recommended for this machine?

A: Regular Cleaning-In-Place (CIP) is advised, typically at the end of each production shift or as per your hygiene protocol, to maintain sanitary conditions and ensure optimal operation of the rinsing, filling, and capping systems. This prevents buildup, maintains water quality, and prolongs equipment lifespan.

Q: Where can this plant be installed, and what installation options are available?

A: The plant is designed for versatile installation and can be set up either as a skid-mounted unit or directly on-site, depending on available space and operational needs. It is suitable for manufacturing facilities, service provider plants, or any packaged water production site across India.

Q: What is the process workflow for bottling water using this plant?

A: The process begins with multi-stage filtration and purification of water, followed by automated bottle rinsing at 3-5 stations, precise filling via an electric motor-driven system, and secure capping with screw or ROPP caps. All stages are PLC-controlled, supporting consistent, high-speed output while maintaining hygiene and accuracy.

Q: How many operators are required to run the 40 BPM water bottle plant efficiently?

A: Thanks to its high degree of automation and integrated systems, the plant requires only 2-3 persons per shift for smooth operation, greatly reducing labor costs and improving productivity compared to manual or semi-automatic alternatives.

Q: What benefits does the integrated control panel offer to users?

A: The PLC-based automated control panel allows easy monitoring, adjustment, and optimization of the entire bottling process. It ensures precise filling accuracy (1%), manages cleaning cycles, and streamlines workflow, making operation user-friendly while enhancing efficiency and reducing the possibility of operator errors.
