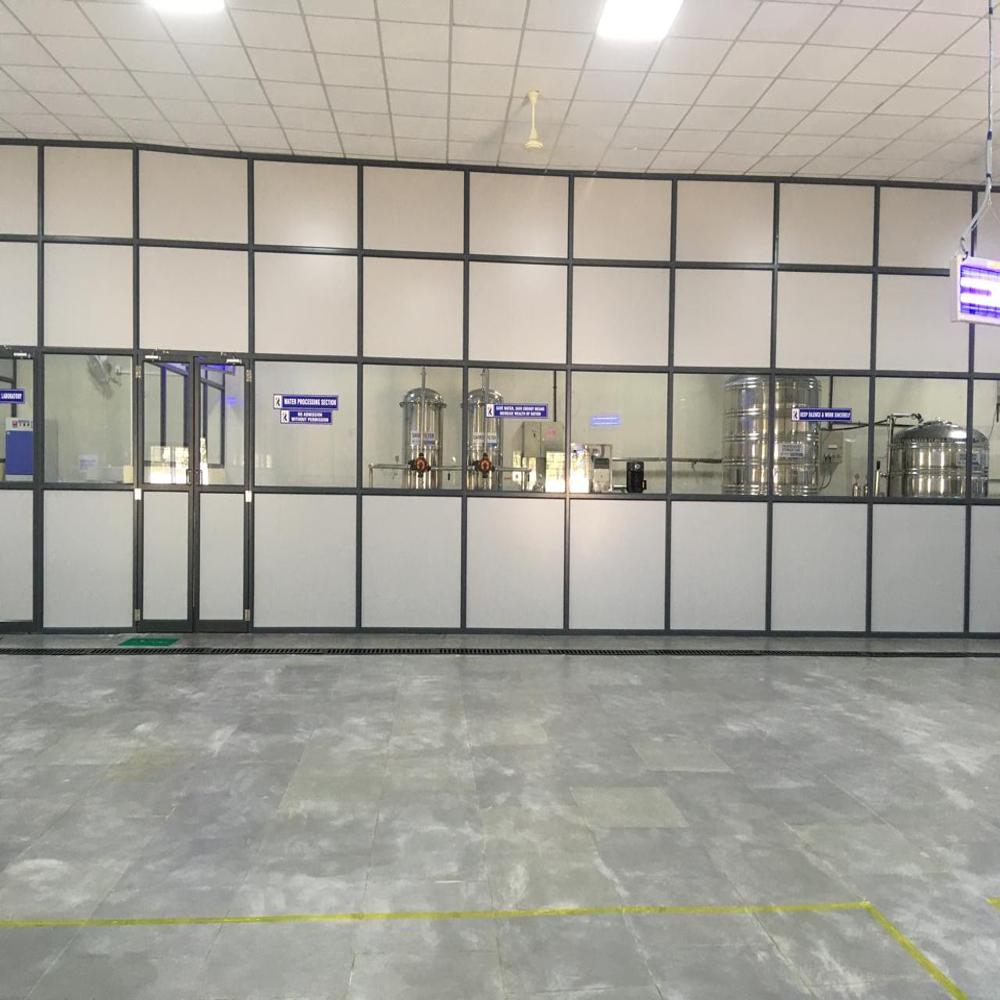

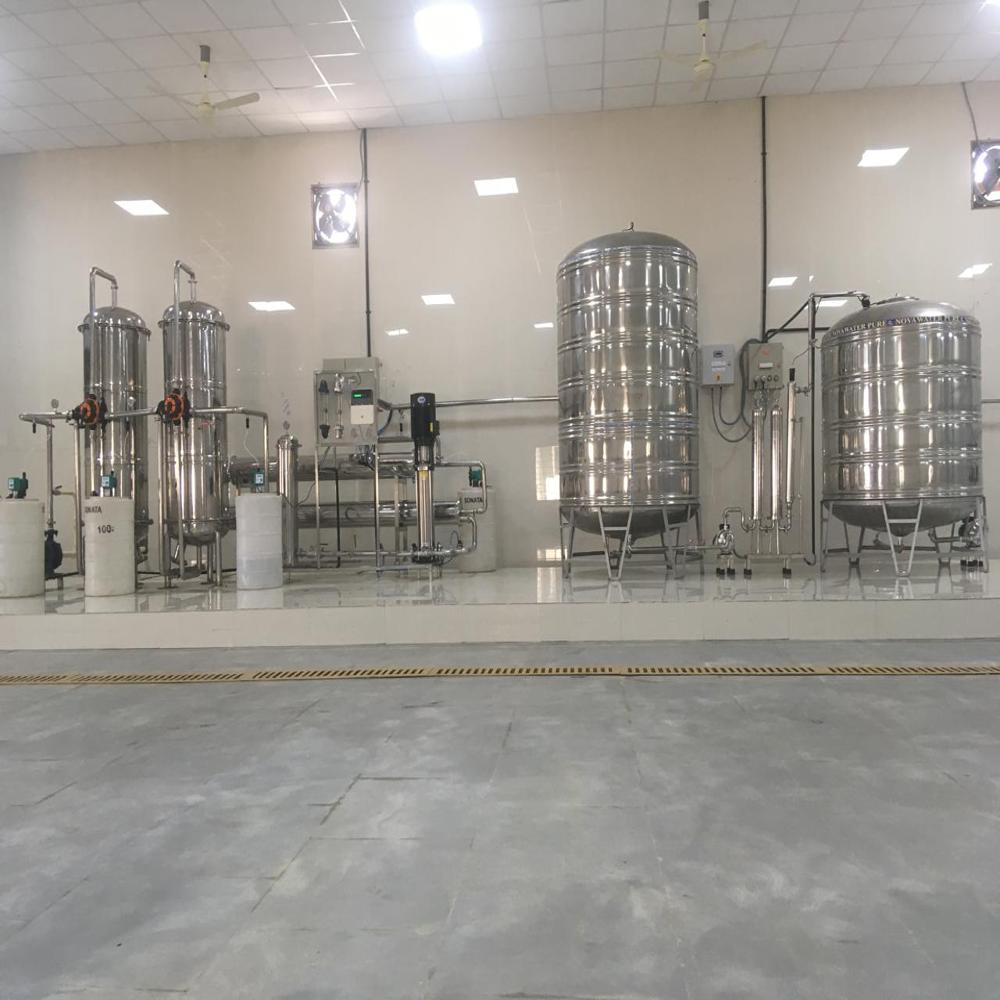

Package Drinking water plant

Package Drinking water plant Specification

Feature
Pre-fabricated/Plug & Play, Low Maintenance, Compact Design

Technology
RO/UV/Ozone Filtration

Recycle Rate
Up to 90%

Efficiency (%)
Above 95%

Power Consumption
3-8 kW (Depending on Capacity)

Water Out Conductivity
< 10 S/cm

Frequency
50/60 Hz

Usage & Applications
Packaged drinking water bottling, Water purification and supply

Pump Type
Centrifugal, Booster

Noise Level
< 70 dB

Water in conductivity
< 2000 S/cm

Flow Rate
As per plant capacity, Up to 20,000 LPH

Ph Level
6.5 to 8.5

Volume
Customized

Voltage
220/380 V, 50/60 Hz

Automatic Grade
Automatic

Power Source
Electric

Drive Type
Electric Motor

Purity Level
99%+ (As per IS:14543)

Material
Stainless Steel (SS304/SS316)

Product Type
Package Drinking Water Plant

Water Source
Borewell, Municipal, River, etc.

Filter Type
Multigrade Sand, Carbon, Micron, UF, RO, Ozonator

Capacity
500 to 20,000 Litres per Hour

Installation Type
Floor Mounted

Bottle Filling Range
200 ml to 20 Ltr (optional)

Service Required
Periodic Servicing Every 6-12 Months

Pretreatment Stages
Sand Filter, Activated Carbon Filter, Softener

Weight
Varies as per plant size

Operating Temperature
5C - 45C

Control System
PLC-based Automated Control

Output Water Standard
Meets BIS/WHO Standards

Inlet Pressure
2-4 kg/cm2

Dimension
Customized as per requirement

Cleaning System
CIP (Clean-In-Place) Provided

Chilling System
Optional Inbuilt Chiller

Outlet Pressure
0.5-1.5 kg/cm2

Display/Indication
Digital Display for Monitoring

Package Drinking water plant Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
5 Pieces Per Month

Delivery Time
8 Week

Sample Available
No

Packaging Details
As per the norms

Main Export Market(s)
Asia

Main Domestic Market
All India

About Package Drinking water plant

We are a leading provider of mineral water projects and water purification solutions with over 15 years of experience. Our expertise in turnkey solutions has enabled us to successfully deliver more than 50 + projects across India.

In addition to our core services, we offer complimentary support to ensure a smooth project implementation. This includes:

Pre-Project Consultancy: Expert guidance on project feasibility and planning.

Loan and Subsidy Assistance: Helping you secure financing and government incentives.

Raw Material Sourcing: Reliable and sustainable supply chains.

Production Team Recruitment: Sourcing and training qualified personnel.

Quality Policy Implementation: Ensuring consistent product quality and safety.

Our client base includes renowned brands such as Spenca, Mountedge, Horison, Empire, Clyde, Splash, Dellaz, Swizzle, Veleta, Sparkle, Sayhdri, Sudhdok, Lerio, Skylon, RaghavAqua, UniversalAqua, and many more.

Comprehensive Water Purification

This plant utilizes a robust multi-stage filtration process, including sand, activated carbon, and softener filters, followed by advanced RO, UV, and ozone treatment. These stages effectively remove physical, chemical, and biological contaminants, ensuring safe, potable water that meets both BIS and WHO quality standards.

Automated & Intelligent Operation

Equipped with a PLC-based automated control and digital monitoring display, the system delivers precise, real-time control and transparency. The plug-and-play design, coupled with low maintenance requirements, makes it a reliable solution for consistent water purity in demanding environments.

Customizable & Scalable Solutions

Customizable in dimensions, volume, and output (500-20,000 LPH), this plant adapts to different space and capacity requirements, whether for small-scale bottling or large-scale water supply. Stainless steel construction ensures longevity, while noise levels remain below 70 dB for comfortable operation.

FAQ's of Package Drinking water plant:

Q: How does the PLC-based automated control system enhance the plant's operation?

A: The PLC-based automated control allows precise and consistent monitoring and management of the entire water treatment process. It minimizes manual intervention, reduces the risk of human error, and supports digital display for real-time performance tracking, ensuring optimal water quality and plant reliability.

Q: What pretreatment stages are included in the water purification process?

A: The plant features a comprehensive pretreatment section with sand filtration to remove large particles, activated carbon filtration for eliminating chlorine and organic compounds, and a softener to reduce water hardness. These stages prepare water for advanced RO, UV, and ozone purification.

Q: When is periodic servicing required for this water plant?

A: To maintain peak efficiency and water quality, periodic servicing is recommended every 6 to 12 months. Regular maintenance ensures the longevity of essential components and helps the plant meet stringent safety and hygiene standards continuously.

Q: Where can this packaged drinking water plant be installed?

A: This plant is floor-mounted and customizable in size, making it suitable for a variety of spaces such as industrial sites, bottling facilities, commercial establishments, and even municipal water projects. The plug-and-play design ensures straightforward installation.

Q: What benefits does the inbuilt CIP (Clean-In-Place) system provide?

A: The CIP system allows automatic internal cleaning without dismantling equipment. This reduces downtime, maintains sanitation, extends component lifespan, and supports compliance with hygiene standards, making operation both efficient and cost-effective.

Q: How is the plant adaptable for different water sources?

A: The system is designed to treat water from multiple sources including borewells, municipal supply, and rivers, with filter technology capable of efficiently handling a wide range of input water conductivities (<2000 S/cm), ensuring consistent output quality.

Q: What are the main applications of this packaged drinking water plant?

A: This plant is ideal for packaged drinking water bottling, water purification for supply needs, and as a solution provider for locations requiring high-efficiency, reliable, and safe water processing. Its compact, low-maintenance design makes it suitable for diverse usage scenarios across India.
