Packaged drinking water plant

Packaged drinking water plant Specification

Water Out Conductivity
Less than 10 S/cm

Ph Level
7-8.5

Flow Rate
1-10 m3/h

Pump Type
Centrifugal / High pressure RO pump

Recycle Rate
Up to 70%

Feature
Corrosion Resistant, Low Maintenance, High Efficiency

Water in conductivity
200-2000 S/cm

Technology
Reverse Osmosis (RO), UV, Ozone

Efficiency (%)
Over 95%

Power Consumption
3-15 kW

Usage & Applications
Mineral Water Bottling, Drinking Water Supply

Frequency
50/60 Hz

Noise Level
Less than 70 dB

Water Source
Borewell/municipal/tap water

Purity Level
99.99%

Volume
500-20000 L/day

Material
Stainless Steel

Product Type
Packaged Drinking Water Plant

Automatic Grade
Automatic

Voltage
220-380 V

Drive Type
Electric motor

Power Source
Electric

Filter Type
Multi-grade Sand/Carbon Filter

Capacity
1000-10000 LPH

Installation Type
Skid Mounted

Operation Temperature
5C-45C

Control Panel
PLC Based Automatic

Frame Structure
Heavy Duty Stainless Steel Frame

Disinfection System
UV Sterilizer and Ozonization

Pretreatment Included
Yes (Sand filter, Activated Carbon Filter)

Membrane Type
Thin Film Composite (TFC)

Piping
Food Grade PVC/Stainless Steel

Control Method
Digital/Manual

Storage Tank Material
SS 304 / 316

Bottle Filling Range
200 ml to 20 L

Pre-filtration Size
5 Micron

Plant Dimensions
Customizable as per capacity

Feed Water Pressure
>2 bar

Cleaning System
Automatic CIP (Clean-in-Place)

Packaged drinking water plant Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Supply Ability
5 Units Per Month

Delivery Time
8 Week

Sample Available
No

Packaging Details
AS PER THE NORMS

Main Export Market(s)
Asia

Main Domestic Market
All India

About Packaged drinking water plant

We are a leading provider of mineral water projects and water purification solutions with over 15 years of experience. Our expertise in turnkey solutions has enabled us to successfully deliver more than 50 + projects across India.

In addition to our core services, we offer complimentary support to ensure a smooth project implementation. This includes:

Pre-Project Consultancy: Expert guidance on project feasibility and planning.

Loan and Subsidy Assistance: Helping you secure financing and government incentives.

Raw Material Sourcing: Reliable and sustainable supply chains.

Production Team Recruitment: Sourcing and training qualified personnel.

Quality Policy Implementation: Ensuring consistent product quality and safety.

Our client base includes renowned brands such as Spenca, Mountedge, Horison, Empire, Clyde, Splash, Dellaz, Swizzle, Veleta, Sparkle, Sayhdri, Sudhdok, Lerio, Skylon, RaghavAqua, UniversalAqua, and many more.

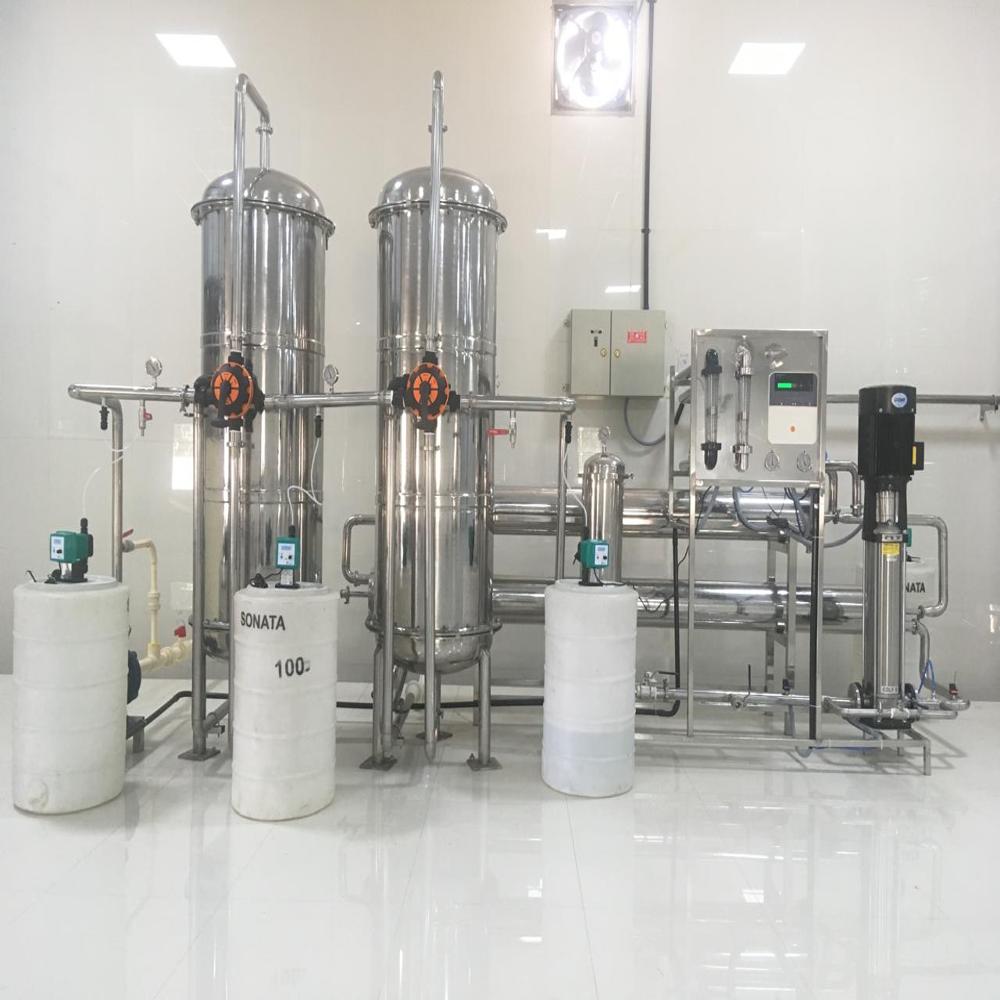

Comprehensive Filtration & Disinfection

This packaged drinking water plant employs a multi-stage pretreatment process, including multi-grade sand and activated carbon filters, to eliminate suspended solids and impurities from various water sources. Enhanced with advanced UV sterilization and ozonization, the system consistently delivers water meeting stringent purity standards. The reverse osmosis section leverages TFC membranes for superior filtration efficiency, effectively reducing contaminants and ensuring every bottle is safe for consumption.

Automated Operation & Customization

Featuring a PLC-based control panel, the plant offers fully automatic operations with digital or manual control modes. The system is designed for operational flexibility, supporting a bottle filling range from 200 ml up to 20 liters and a flow rate of 1-10 m3/h. With customizable dimensions and capacity from 1,000 to 10,000 LPH, the plant adapts seamlessly to diverse site requirements and business volumes.

FAQ's of Packaged drinking water plant:

Q: How does the packaged drinking water plant ensure water purity?

A: The plant incorporates a multi-stage purification process, beginning with sand and activated carbon filters to remove suspended solids and organic pollutants. UV sterilization and ozonization systems provide disinfection, while Thin Film Composite reverse osmosis membranes deliver high-efficiency solute rejection. This combination achieves a final purity level of 99.99%, with water conductivity reduced to less than 10 S/cm.

Q: What types of water sources can this plant process?

A: This packaged drinking water plant is compatible with various feed water sources, including borewell, municipal, and tap water. Its robust pre-filtration and membrane technology are engineered to handle a wide conductivity range (200-2000 S/cm), making it versatile for different geographical and source water quality conditions.

Q: When is the automatic CIP (Clean-in-Place) system used?

A: The automatic CIP system is initiated at scheduled intervals or as needed to clean and sanitize filters, membranes, and piping. This process prevents biofouling, scaling, and inorganic deposit buildup, ensuring the system retains its optimal efficiency and extends component lifespan without significant manual intervention.

Q: Where is this water plant typically installed?

A: The plant's skid-mounted, heavy-duty stainless steel structure allows it to be easily installed in a variety of locations, such as commercial bottled water manufacturing units, industrial facilities, hospitality establishments, and municipal water supply installations across India. Plant dimensions are fully customizable depending on the available space and required capacity.

Q: What are the benefits of using a PLC-based automatic control panel?

A: The PLC-based automatic control panel streamlines plant operation by enabling real-time monitoring, fault detection, and process automation. This minimizes human error, increases system reliability, and enhances overall process efficiency. Operators can easily switch between digital and manual controls to adapt to operational demands.

Q: How efficient is the water recycling and recovery process?

A: The plant achieves an impressive recycle rate of up to 70%, significantly reducing water wastage. The advanced filtration and RO processes optimize recovery while maintaining water quality, making the system both cost-effective and environmentally friendly.

Q: What are the potential applications of this packaged drinking water plant?

A: Its reliable purification technology and high capacity make this plant suitable for mineral water bottling, commercial drinking water networks, and supplementary water supply in industries or institutions requiring high standards of water hygiene and safety.
